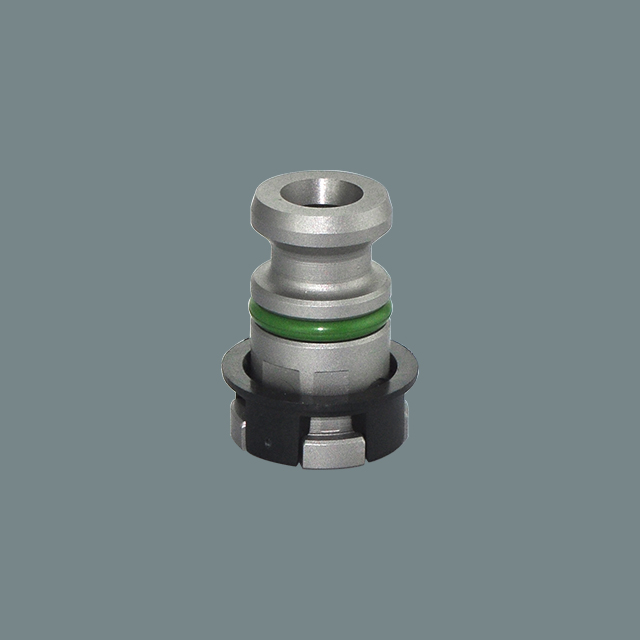

R Type drawbar 3A-400006

Availability:
Inquire Add to Basket

  • 3A-400006

  • A-ONE

  • 8466200090

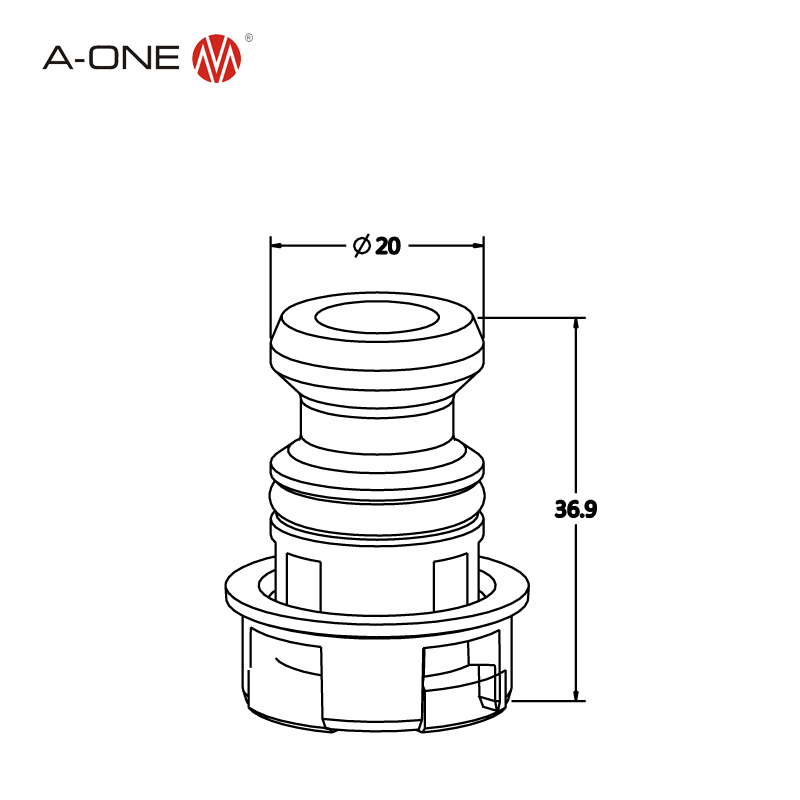

Version Ø20*36.9 mm with flushing holes Ø7 mm.
Rust-resistant.
Supply separately.
ApplicationSuitable for R manual chuck
Net weight0.06 KG
