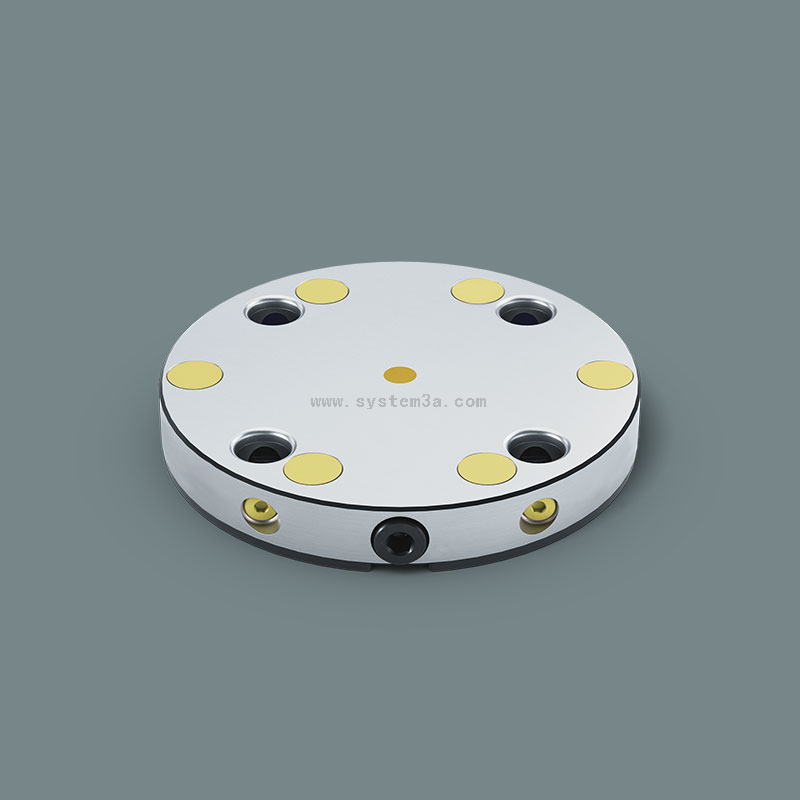

Fast manual zero point plate 3A-110247

Resetting precision Less than 0.005mm,Version φ176x27mm
Availability:
Inquire Add to Basket

  • 3A-110247

  • A-ONE

  • 8466200090

Version

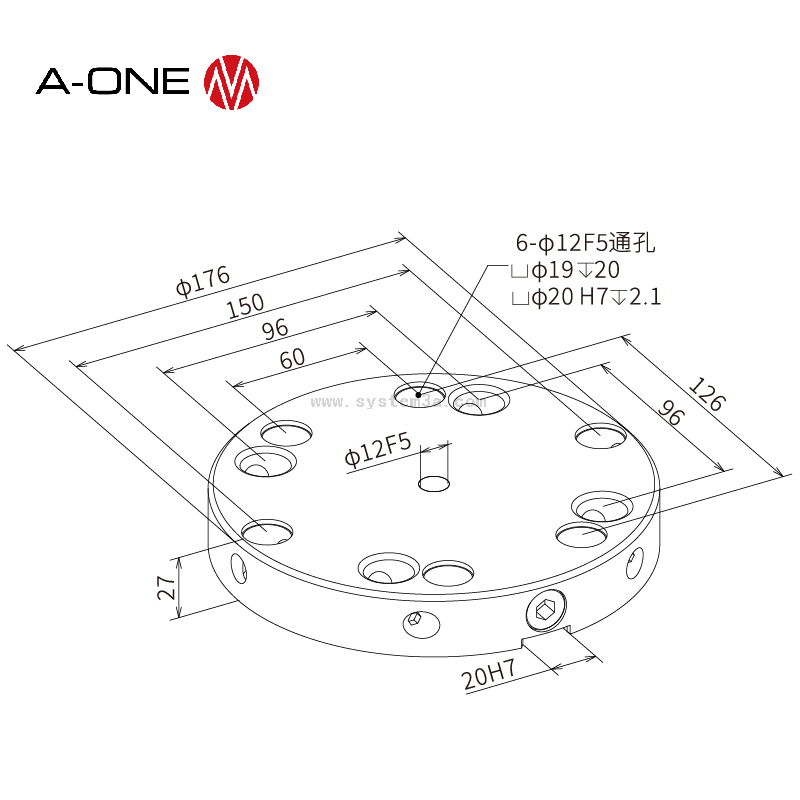

φ176x27mm,Resetting precision Less than 0.005mm,use with φ20 drawbar, Set-up distance 96mm, Torque30Nm

with mounting bores for 63mm T-slot distance and 150mmdistance

Net weight 4.7Kg
